LED Sign City 8’ x 17’ LED sign, 3 Resolution Options, Brightness up to 10000 nits, Fully Programmable, Wireless Control System, Automatic sensors for brightness and temperature, Single and Double-sided display visibility
Modular 8-ft. x 17-ft. Outdoor LED sign
LED Sign City's custom full-color outdoor LED signs are the ultimate companion on your journey to promote your business. Powered by the latest LED sign technology, this fully programmable LED sign can display high-quality images, videos, and text ads. Our custom LED sign will give you top-tier performance to meet your advertising need.
LED Display Diagram

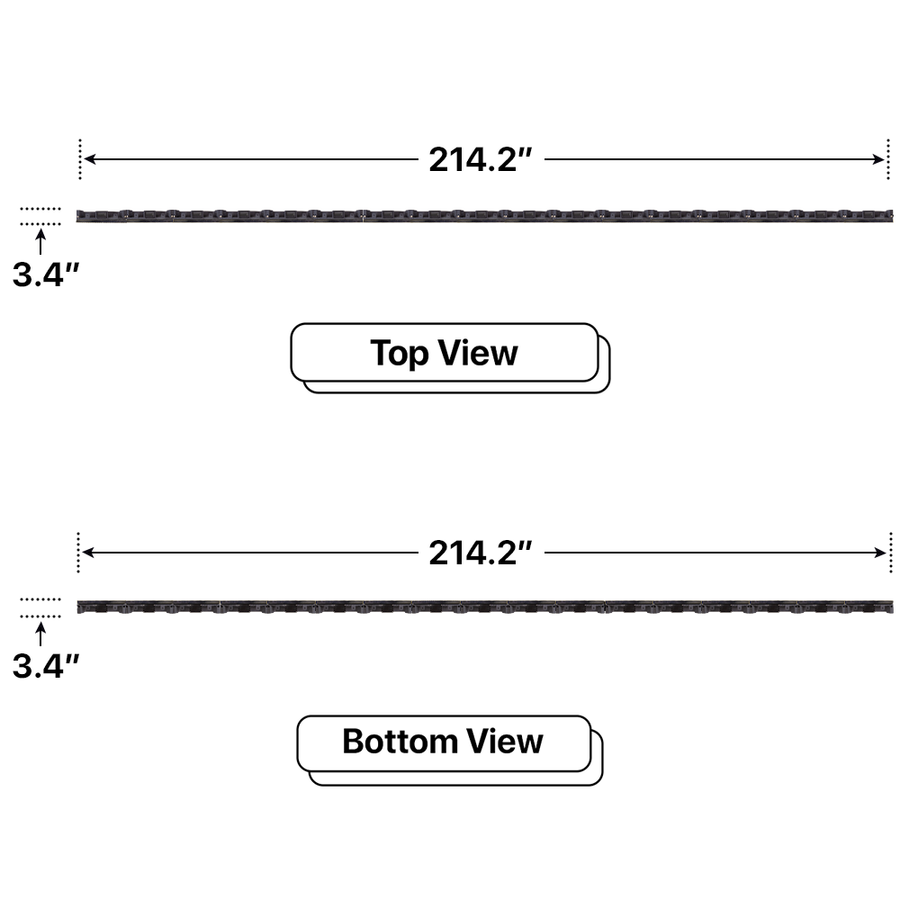

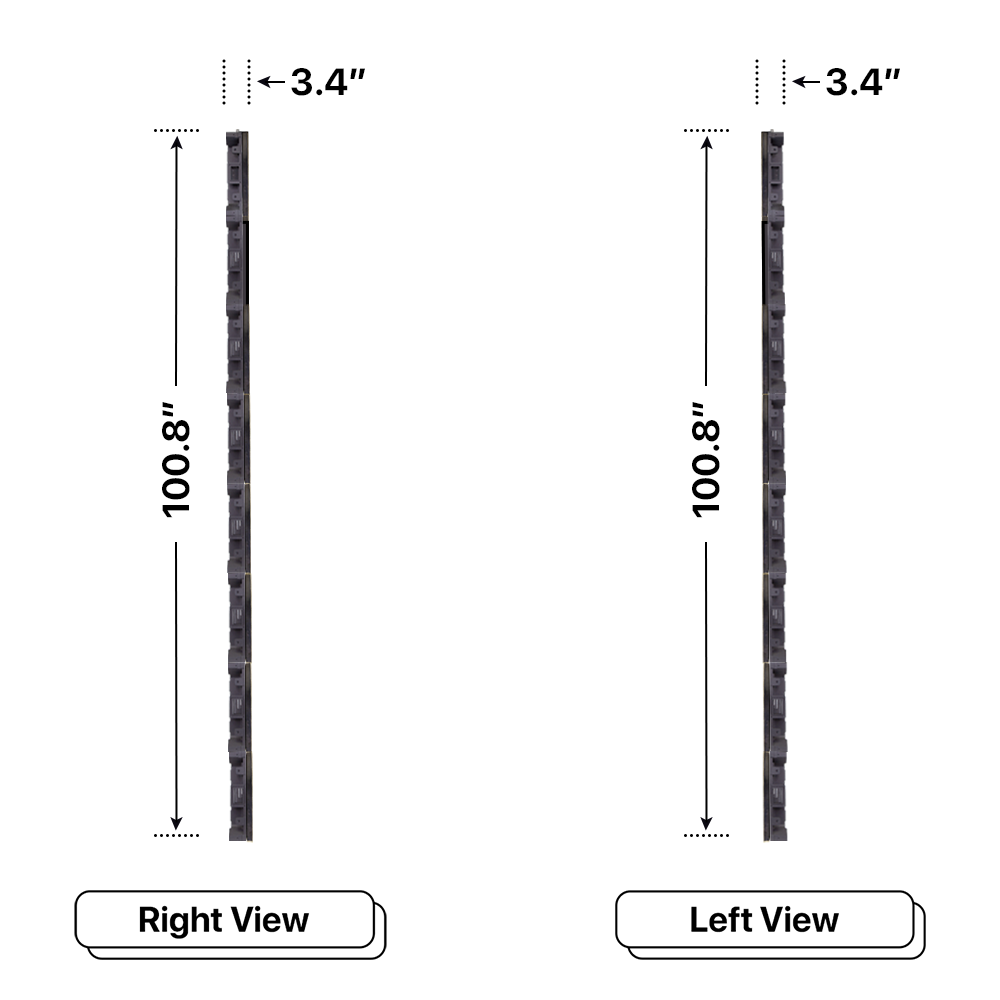

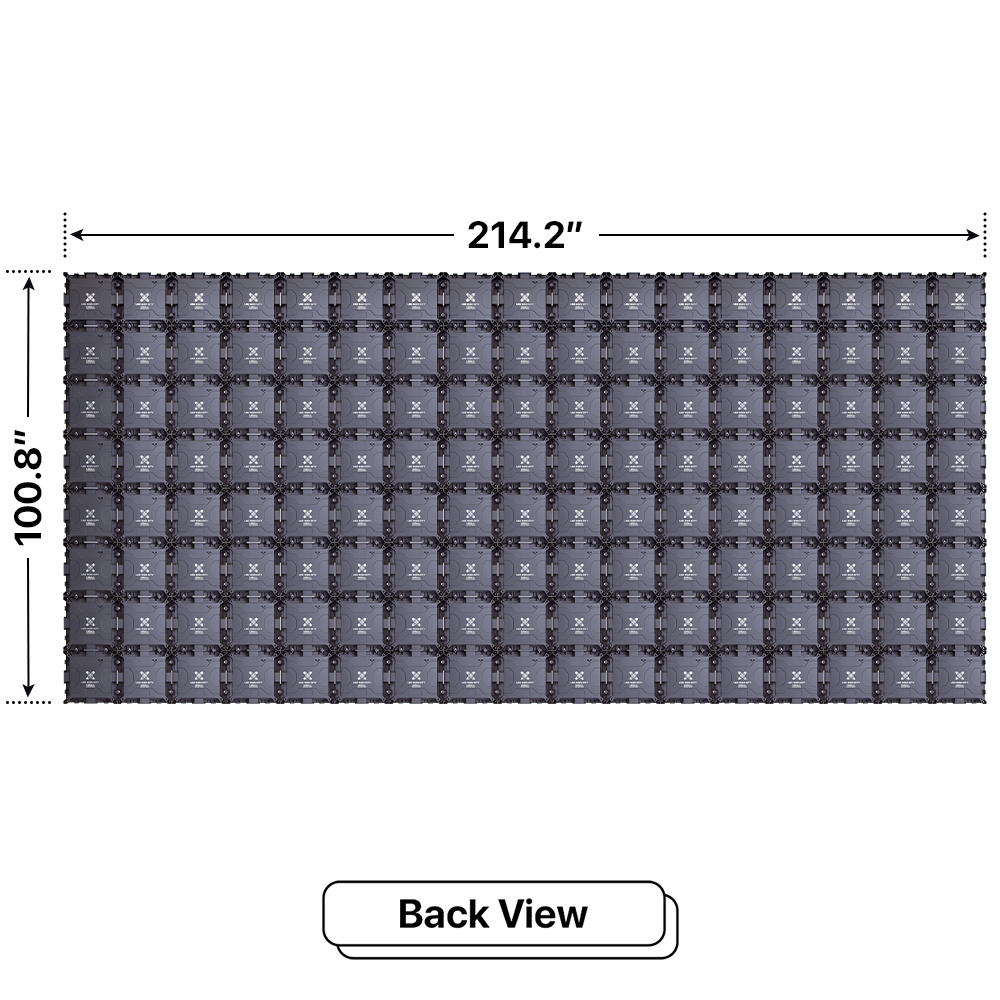

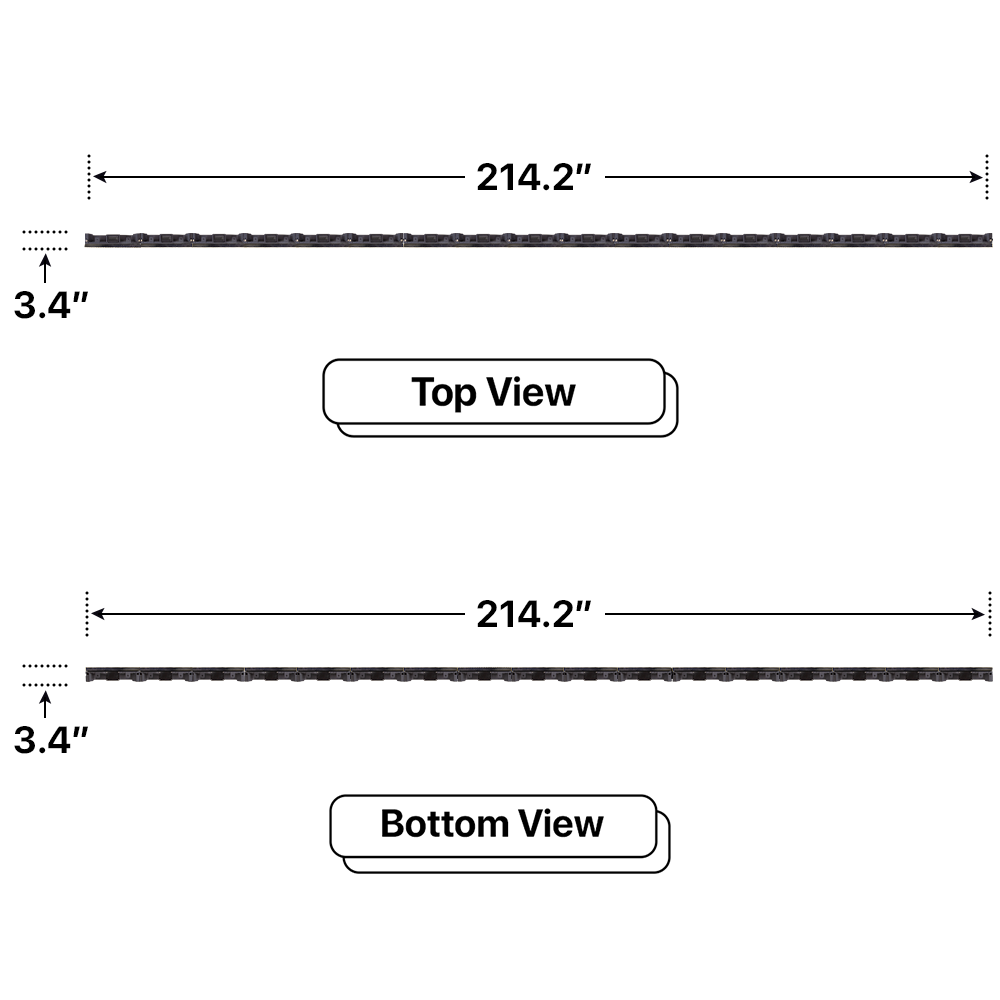

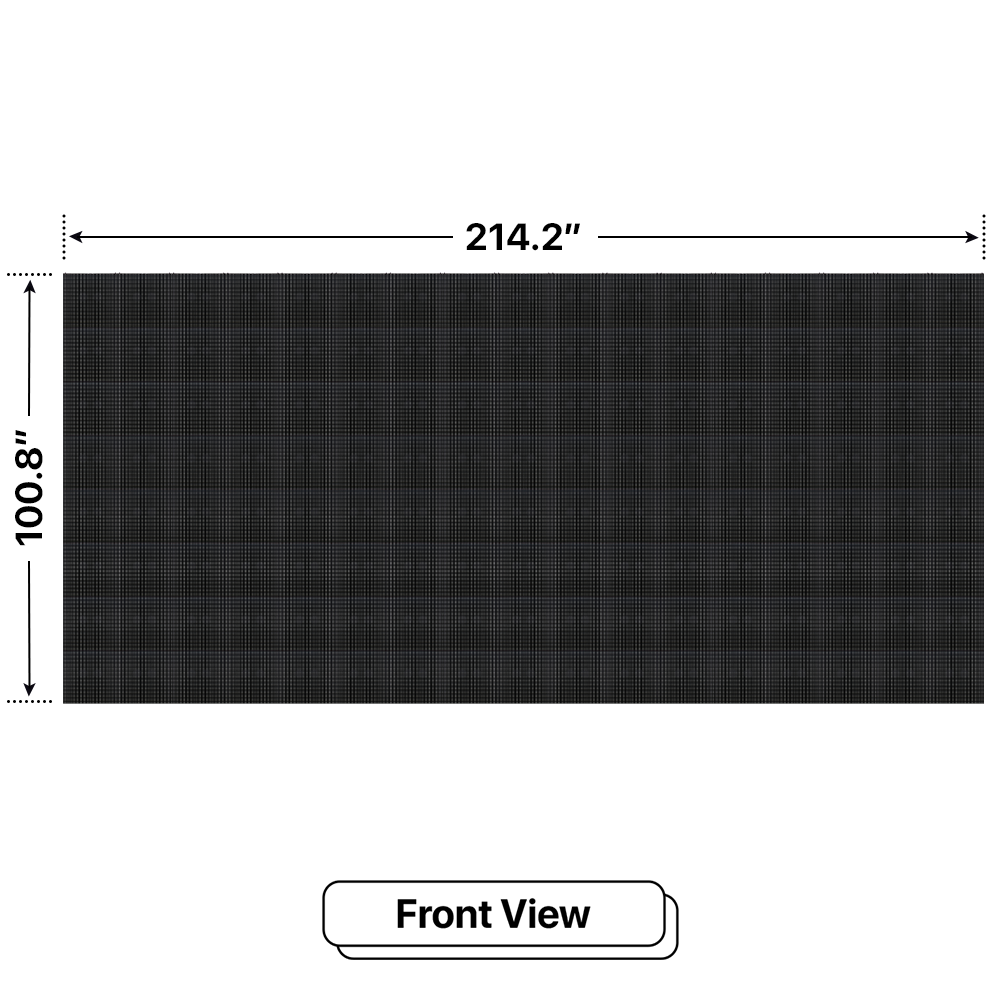

Illustrations of the LED Sign’s angles and dimensions
||Beacon HD | P6 mm||Beacon | P8 mm||Spotlight | P10 mm||Lighthouse | P16 mm|
|Screen Size||8 feet x 17 feet (Actual: 100.8-in * 214.2-in)||8 feet x 17 feet (Actual: 100.8-in * 214.2-in)||8 feet x 17 feet (Actual: 100.8-in * 214.2-in)||8 feet x 17 feet (Actual: 100.8-in * 214.2-in)|
|Display Visibility||Single Sided / Double Sided||Single Sided / Double Sided||Single Sided / Double Sided||Single Sided / Double Sided|
|Pixel density||2304 Pixels Per Module||1600 Pixels Per Module||1024 Pixels Per Module||400 Pixels Per Module|
|Display Resolution||384 pixels x 816 pixels||320 pixels x 680 pixels||256 pixels x 544 pixels||160 pixels x 340 pixels|
|LED Configuration||DIP & SMD 3 in 1||SMD 3 in 1||SMD 3 in 1||DIP Real Pixels|
|Design||XIGNZ Modular LED||XIGNZ Modular LED||XIGNZ Modular LED||XIGNZ Modular LED|
|Media Support||Images, Videos, Slides, and more.||Images, Videos, Slides, and more.||Images, Videos, Slides, and more.||Images, Videos, Slides, and more.|
|Brightness||Standard 7000 Nits / High Brightness 8000 Nits||Standard 7500 Nits / High Brightness 8500 Nits||Standard 8500 Nits / High Brightness 10000 Nits||Standard 9000 Nits / High Brightness 11500 Nits|
|Power consumption||Max 12920 watts per side||Max 12920 watts per side||Max 12920 watts per side||Max 12920 watts per side|
|Sensors||Temperature and Brightness||Temperature and Brightness||Temperature and Brightness||Temperature and Brightness|
|Communication||LAN, WIFI, 4G (Optional)||LAN, WIFI, 4G (Optional)||LAN, WIFI, 4G (Optional)||LAN, WIFI, 4G (Optional)|
|Weight||1360 pounds per side||1360 pounds per side||1360 pounds per side||1360 pounds per side|
Display your ads and grow your business even in harsh weather conditions

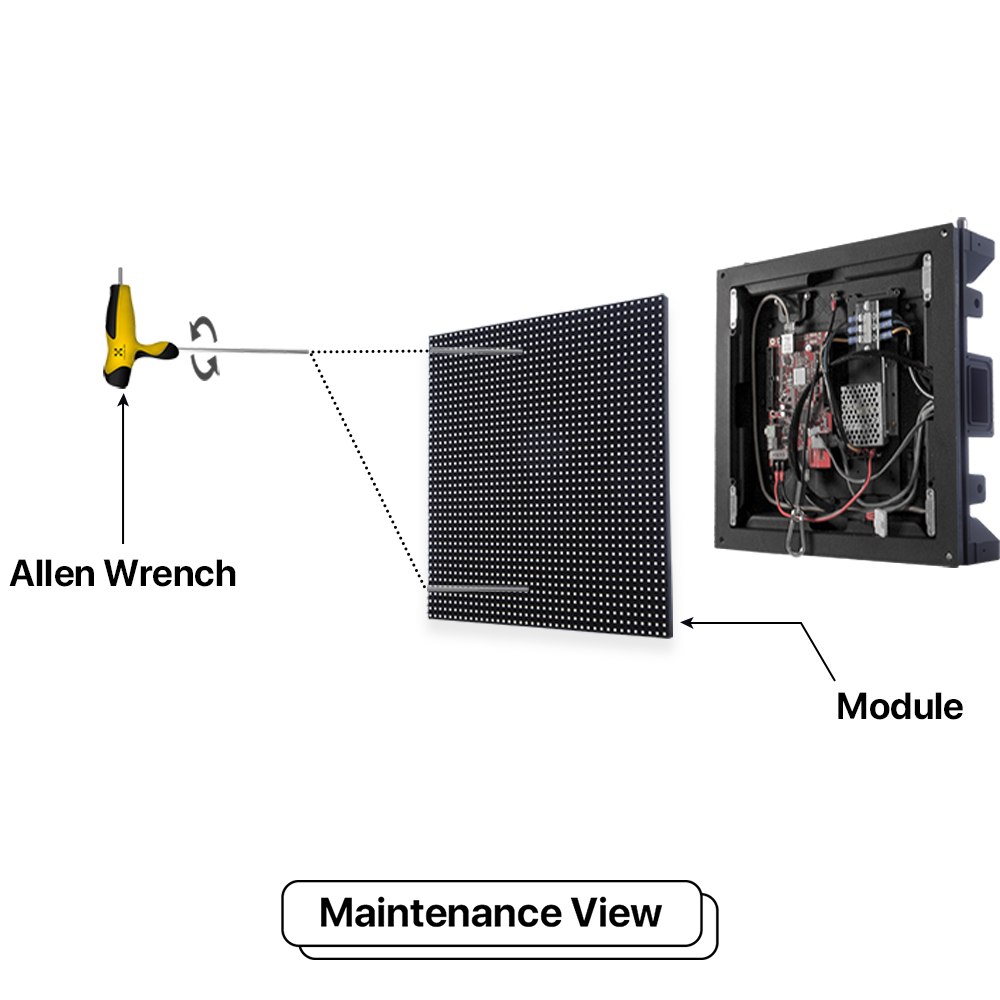

Easily upgrade and increase resolution, brightness, controller, and internal components to fit your advertising needs.
XIGNZ Modular Platform
The XIGNZ modular platform elevates everything from material quality, and construction standard, to component fitment.
Promote your dreams
LED Sign City's custom 5'x5' full-color outdoor LED sign is the ultimate companion on your journey to promote your business.
TMillions of colors for everyone
Up to 4096 pixels per module to create an unlimited combination of colors to display ads with your images and videos.
Dream, Create, Promote
Imagine an LED Sign that can deliver the highest visuals today and adapt to higher levels of brightness and clarity tomorrow. Well, here it is.
Built to grow alongside you
The XIGNZ modular platform makes it possible to increase the size of your sign to meet your changing advertising needs.
Wireless control system and free content management software
Led Sign City Custom LED Signs to come standard with your choice of a WIFI or 4GController. Your purchase includes a free content management software package to create engaging ads.
The LED Sign software supports all the popular formats providing unrestricted creative freedom.
Supported formats include: .mp4, .jpg, .png, .gif, .ppt,.pptx, .avi, .bmp, .rtf, and many more.
Choose the Right LED Sign for your Application
Each millimeter spacing between pixels requires the viewer to be at
least 10 feet away from your LED sign.
Beacon HD 6.7mm
Suitable for Signs viewed from distances 67 feet and further away.
Suitable for Signs viewed from distances 80 feet and further away.
Suitable for Signs viewed from distances 100 feet and further away.
Suitable for Signs viewed from distances 160 feet and further away.
Choose the Resolution that fits your style
The Signs resolution is determined by the total number of pixels. Higher Pixels Per
Module (PPM) will create smoother images and videos.
The Beacon HD has 48 rows and 48 columns of pixels creating a pixel density of 2304 PPM.
The Beacon has 40 rows and 40 columns of pixels creating a pixel density of 1600 PPM.
The Spotlight has 32 rows and 32 columns of pixels creating a pixel density of 1024 PPM.
The Lighthouse has 20 rows and 20 columns of pixels creating a pixel density of 400 PPM.
Choose the Right Brightness for your Environment
Outdoor signs require a higher nit rating to ensure visibility in direct sunlight. Nits are a standard measurement of how much light the sign sends to your eyes.
Lighthouse 10000 Nits | Spotlight 8000 Nits | Beacon 7500 Nits
| Beacon HD 7000 Nits
Increase Brightness 14% - 25%
Lighthouse 12000 Nits | Spotlight 10000 Nits | Beacon 8500 Nits
| Beacon HD 8000 Nits
